ALF Series


Introduction

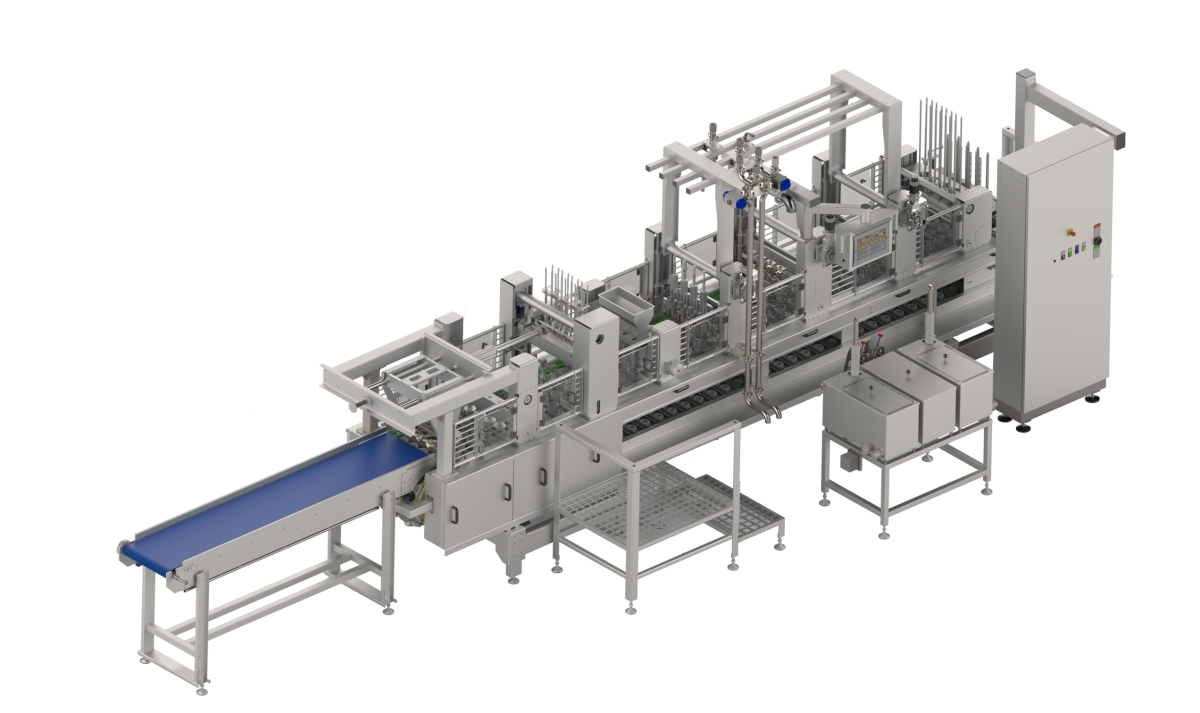

Linear fillers ALF are automatic filling machines for production of cups and cones.

ALF fillers are manufactured to the highest technical level, and meets current requirements for efficiency, hygiene, and safety. The machine is characterized by high flexibility, comfortable working height, and great usability and can be operated from both sides. It is easy to clean and inspect.

Capacities from 5 000 pcs/hour (ALF-04) to 18 000 pcs/hour (ALF-09) are available.

Linear fillers LF can be linked to any type of hardening tunnel (HT) to complete the entire production process. This option is basically avaible for all type of ARCTIC hardening tunnels, other hardening tunnels on request

Features of ALF Series:

  • Strong stainless steel frame with adjustable legs
  • Operator panel 9“ LCD touch screen. Any possible language on request
  • Complete emachine settings under recipes stored
  • Set of lamellas with 4/6/8/9 positions
  • Step-by-step pneumatic/servo lamella driving unit
  • Multiple filling stations
  • Airless choco spray
  • Volumetric dosage of dry ingredients
  • Heat sealing stations
  • Electronic control panel in IP 65 protection rate with electric elements and control (OMRON PLC)
  • Automatic start procedure
  • Low service and maintenece costs

Technical parameters:

  • Cups production up to 18 000 pcs/h
  • AL Cone production up to 18 000 pcs/h
  • Family pack production up to 6 000 pcs/h

Optional accessories:

ALF  filling machine can be completed with following accessories:

  • Topink vats with high pressure volumetric pumps
  • Large variety of filling stations, decoration units, lidding units
  • Vertical extrusion cutting station/s
  • Robotic transfer of finished products to hardening tunnel.
